Getting started with tskit#

You’ve run some simulations or inference methods, and you now have a TreeSequence object; what now? This tutorial is aimed users who are new to tskit and would like to get some basic tasks completed. We’ll look at five fundamental things you might need to do: process trees, sites & mutations, and genotypes, compute statistics, and save or export data. Throughout, we’ll also provide pointers to where you can learn more.


The examples in this tutorial are all written using the Python API, but it’s also possible to use R, or access the API in other languages, notably C and Rust.

A number of different software programs can generate tree sequences. For the purposes of this tutorial we’ll use msprime to create an example tree sequence representing the genetic genealogy of a 10Mb chromosome in twenty diploid individuals. To make it a bit more interesting, we’ll simulate the effects of a selective sweep in the middle of the chromosome, then throw some neutral mutations onto the resulting tree sequence.

import msprime


sweep_model = msprime.SweepGenicSelection(
    position=seq_length/2, start_frequency=0.0001, end_frequency=0.9999, s=0.25, dt=1e-6)

ts = msprime.sim_ancestry(
    model=[sweep_model, msprime.StandardCoalescent()],
    random_seed=1234,  # only needed for repeatabilty
# Optionally add finite-site mutations to the ts using the Jukes & Cantor model, creating SNPs
ts = msprime.sim_mutations(ts, rate=1e-8, random_seed=4321)
Tree Sequence
Sequence Length10000000.0
Time Unitsgenerations
Sample Nodes40
Total Size2.4 MiB
MetadataNo Metadata
Table Rows Size Has Metadata
Edges 36372 1.1 MiB
Individuals 20 584 Bytes
Migrations 0 8 Bytes
Mutations 13568 490.3 KiB
Nodes 7342 200.8 KiB
Populations 1 224 Bytes
Provenances 2 1.9 KiB
Sites 13554 330.9 KiB

You can see that there are many thousands of trees in this tree sequence.


Since we simulated the ancestry of 20 diploid individuals, our tree sequence contains 40 sample nodes, one for each genome.

Processing trees#

Moving along a tree sequence usually involves iterating over all of its Tree objects. This common idiom underlies many tree sequence algorithms, including those we’ll encounter later in this tutorial for calculating population genetic statistics. To iterate over a tree sequence you can use TreeSequence.trees().

for tree in ts.trees():
    print(f"Tree {tree.index} covers {tree.interval}")
    if tree.index >= 4:
print(f"Tree {ts.last().index} covers {ts.last().interval}")
Tree 0 covers Interval(left=0.0, right=661.0)
Tree 1 covers Interval(left=661.0, right=3116.0)
Tree 2 covers Interval(left=3116.0, right=4451.0)
Tree 3 covers Interval(left=4451.0, right=4673.0)
Tree 4 covers Interval(left=4673.0, right=5020.0)
Tree 11166 covers Interval(left=9999635.0, right=10000000.0)

In this code snippet, as well as the trees() iterator, we’ve also used TreeSequence.last() to access the last tree directly; it may not surprise you that there’s a corresponding TreeSequence.first() method to return the first tree.

Above, we stopped iterating after Tree 4 to limit the printed output, but iterating forwards through trees in a tree sequence (or indeed backwards using the standard Python reversed() function) is efficient. That means it’s quick, for example to check if all the trees in a tree sequence have fully coalesced (which is to be expected in reverse-time, coalescent simulations, but not always for tree sequences produced by forward simulation).

import time
elapsed = time.time()
for tree in ts.trees():
    if tree.has_multiple_roots:
        print("Tree {tree.index} has not coalesced")
    elapsed = time.time() - elapsed
    print(f"All {ts.num_trees} trees coalesced")
    print(f"Checked in {elapsed:.6g} secs")
All 11167 trees coalesced
Checked in 0.0102417 secs

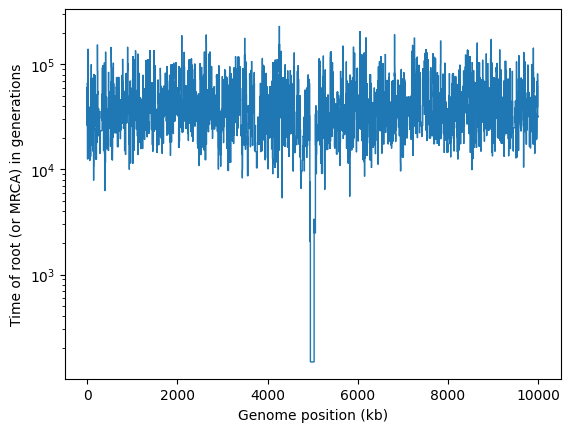

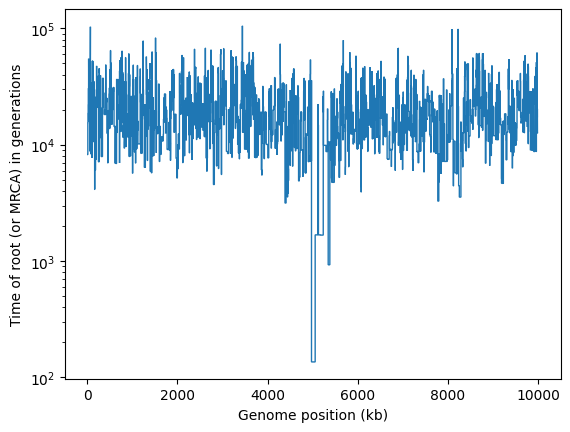

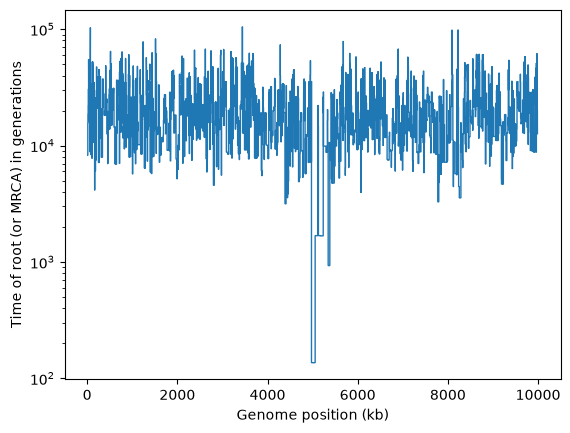

Now that we know all trees have coalesced, we know that at each position in the genome all the 40 sample nodes must have one most recent common ancestor (MRCA). Below, we iterate over the trees, finding the IDs of the root (MRCA) node for each tree. The time of this root node can be found via the tskit.TreeSequence.node() method, which returns a Node object whose attributes include the node time:

import matplotlib.pyplot as plt

kb = [0]  # Starting genomic position
mrca_time = []
for tree in ts.trees():
    kb.append(tree.interval.right/1000)  # convert to kb
    mrca = ts.node(tree.root)  # For msprime tree sequences, the root node is the MRCA
plt.stairs(mrca_time, kb, baseline=None)
plt.xlabel("Genome position (kb)")
plt.ylabel("Time of root (or MRCA) in generations")

It’s obvious that there’s something unusual about the trees in the middle of this chromosome, where the selective sweep occurred.

Although tskit is designed so that is it rapid to pass through trees sequentially, it is also possible to pull out individual trees from the middle of a tree sequence via the method. Here’s how you can use that to extract the tree at location \(5\ 000\ 000\) — the position of the sweep — and draw it using the Tree.draw_svg() method.

swept_tree =  # or you can get e.g. the nth tree using ts.at_index(n)
intvl = swept_tree.interval
print(f"Tree number {swept_tree.index}, which runs from position {intvl.left} to {intvl.right}:")
# Draw it at a wide size, to make room for all 40 tips
swept_tree.draw_svg(size=(1000, 200))
Tree number 5382, which runs from position 4998293.0 to 5033047.0:

This tree shows the classic signature of a recent expansion or selection event, with many long terminal branches, resulting in an excess of singleton mutations.

It can often be helpful to slim down a tree sequence so that it represents the genealogy of a smaller subset of the original samples. This can be done using the powerful TreeSequence.simplify() method.

The TreeSequence.draw_svg() method allows us to draw more than one tree: either the entire tree sequence, or (by using the x_lim parameter) a smaller region of the genome:

reduced_ts = ts.simplify([0, 1, 2, 3, 4, 5, 6, 7, 8, 9])  # simplify to the first 10 samples
print("Genealogy of the first 10 samples for the first 5kb of the genome")
reduced_ts.draw_svg(x_lim=(0, 5000))
Genealogy of the first 10 samples for the first 5kb of the genome

These are much more standard-looking coalescent trees, with far longer branches higher up in the tree, and therefore many more mutations at higher-frequencies.


In this tutorial we refer to objects, such as sample nodes, by their numerical IDs. These can change after simplification, and it is often more meaningful to work with metadata, such as sample and population names, which can be permanently attached to objects in the tree sequence. Such metadata is often incorporated automatically by the tools generating the tree sequence.

Processing sites and mutations#

For many purposes it may be better to focus on the genealogy of your samples, rather than the sites and mutations that define the genome sequence itself. Nevertheless, tskit also provides efficient ways to return Site object and Mutation objects from a tree sequence. For instance, under the finite sites model of mutation that we used above, multiple mutations can occur at some sites, and we can identify them by iterating over the sites using the TreeSequence.sites() method:

import numpy as np
num_muts = np.zeros(ts.num_sites, dtype=int)
for site in ts.sites():
    num_muts[] = len(site.mutations)  # site.mutations is a list of mutations at the site

# Print out some info about mutations per site
for nmuts, count in enumerate(np.bincount(num_muts)):
    info = f"{count} sites"
    if nmuts > 1:
        info += f", with IDs {np.where(num_muts==nmuts)[0]},"
    print(info, f"have {nmuts} mutation" + ("s" if nmuts != 1 else ""))
0 sites have 0 mutations
13540 sites have 1 mutation
14 sites, with IDs [ 2275  2287  2658  3789  4043  9694 11023 11780 11853 11890 11999 12023
 12096 12310], have 2 mutations

Processing genotypes#

At each site, the sample nodes will have a particular allelic state (or be flagged as Missing data). The TreeSequence.variants() method gives access to the full variation data. For efficiency, the genotypes at a site are returned as a numpy array of integers:

import numpy as np
np.set_printoptions(linewidth=200)  # print genotypes on a single line

for v in ts.variants():
    print(f"Site {}: {v.genotypes}")
    if >= 4:  # only print up to site ID 4
Site 0: [0 0 1 1 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 0 0 1 0 1 0 0 0 0 0]
Site 1: [1 1 0 0 1 1 0 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 0 0 1 0 1 1 1 1 1 0 1 0 1 0 0 1 1]
Site 2: [0 0 1 1 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 0 0 1 0 1 0 0 0 0 0]
Site 3: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
Site 4: [0 0 1 1 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 0 0 1 0 1 0 0 0 0 0]


Tree sequences are optimised to look at all samples at one site, then all samples at an adjacent site, and so on along the genome. It is much less efficient look at all the sites for a single sample, then all the sites for the next sample, etc. In other words, you should generally iterate over sites, not samples. Nevertheless, all the alleles for a single sample can be obtained via the TreeSequence.haplotypes() method.

To find the actual allelic states at a site, you can refer to the alleles provided for each Variant: the genotype value is an index into this list. Here’s one way to print them out; for clarity this example also prints out the IDs of both the sample nodes (i.e. the genomes) and the diploid individuals in which each sample node resides.

samp_ids = ts.samples()
print("  ID of diploid individual: ", " ".join([f"{ts.node(s).individual:3}" for s in samp_ids]))
print("       ID of (sample) node: ", " ".join([f"{s:3}" for s in samp_ids]))
for v in ts.variants():
    site =
    alleles = np.array(v.alleles)
    print(f"Site {} (ancestral state '{site.ancestral_state}')",  alleles[v.genotypes])
    if >= 4:  # only print up to site ID 4
  ID of diploid individual:    0   0   1   1   2   2   3   3   4   4   5   5   6   6   7   7   8   8   9   9  10  10  11  11  12  12  13  13  14  14  15  15  16  16  17  17  18  18  19  19
       ID of (sample) node:    0   1   2   3   4   5   6   7   8   9  10  11  12  13  14  15  16  17  18  19  20  21  22  23  24  25  26  27  28  29  30  31  32  33  34  35  36  37  38  39
Site 0 (ancestral state 'G') ['G' 'G' 'T' 'T' 'G' 'G' 'T' 'G' 'G' 'G' 'G' 'G' 'G' 'G' 'T' 'G' 'G' 'G' 'G' 'G' 'G' 'G' 'G' 'T' 'G' 'G' 'T' 'G' 'G' 'G' 'G' 'G' 'T' 'G' 'T' 'G' 'G' 'G' 'G' 'G']
Site 1 (ancestral state 'T') ['G' 'G' 'T' 'T' 'G' 'G' 'T' 'G' 'G' 'G' 'G' 'G' 'G' 'G' 'T' 'G' 'G' 'G' 'G' 'G' 'G' 'G' 'G' 'T' 'T' 'G' 'T' 'G' 'G' 'G' 'G' 'G' 'T' 'G' 'T' 'G' 'T' 'T' 'G' 'G']
Site 2 (ancestral state 'T') ['T' 'T' 'C' 'C' 'T' 'T' 'C' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'C' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'C' 'T' 'T' 'C' 'T' 'T' 'T' 'T' 'T' 'C' 'T' 'C' 'T' 'T' 'T' 'T' 'T']
Site 3 (ancestral state 'T') ['T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'A' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T']
Site 4 (ancestral state 'T') ['T' 'T' 'A' 'A' 'T' 'T' 'A' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'A' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'T' 'A' 'T' 'T' 'A' 'T' 'T' 'T' 'T' 'T' 'A' 'T' 'A' 'T' 'T' 'T' 'T' 'T']


Since we have used the msprime.JC69 model of mutations, the alleles are all either ‘A’, ‘T’, ‘G’, or ‘C’. However, more complex mutation models can involve mutations such as indels, leading to allelic states which need not be one of these 4 letters, nor even be a single letter.

Computing statistics#

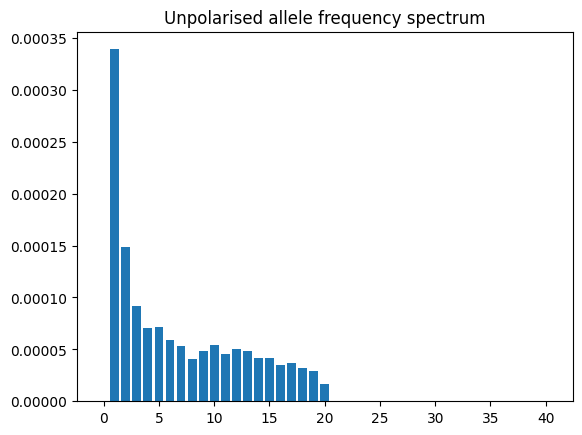

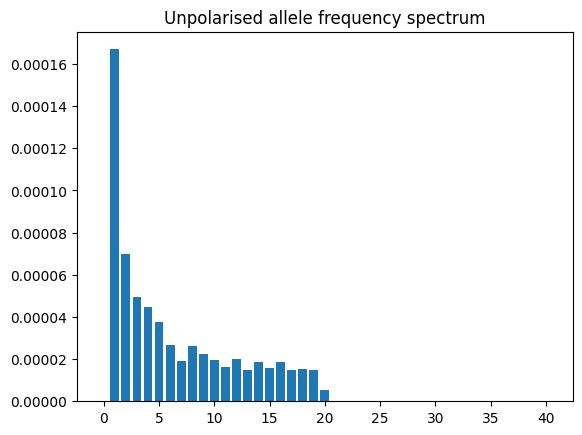

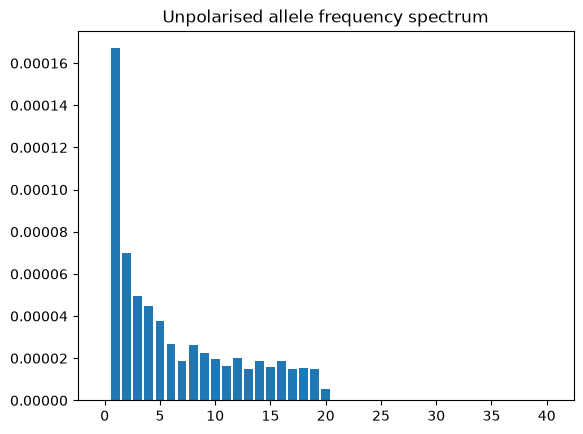

There are a large number of statistics and related calculations built in to tskit. Indeed, many basic population genetic statistics are based on the allele (or site) frequency spectrum (AFS), which can be obtained from a tree sequence using the TreeSequence.allele_frequency_spectrum() method:

afs = ts.allele_frequency_spectrum() + 1), afs)
plt.title("Unpolarised allele frequency spectrum")

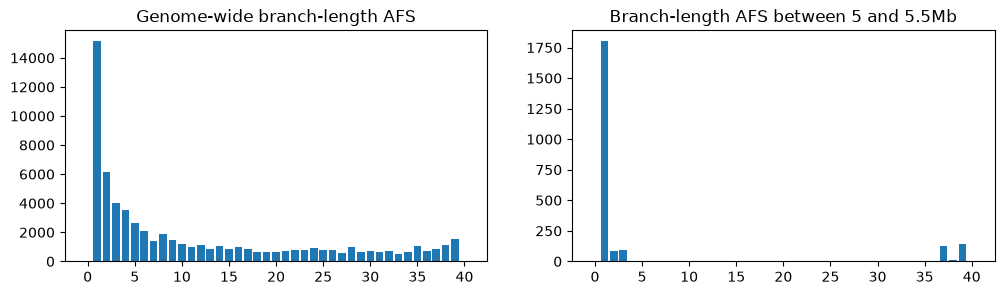

By default this method returns the “folded” or unpolarized AFS that doesn’t take account of the ancestral state. However, since the tree sequence provides the ancestral state, we can plot the polarized version; additionally we can base our calculations on branch lengths rather than alleles, which provides an estimate that is not influenced by random mutational “noise”.

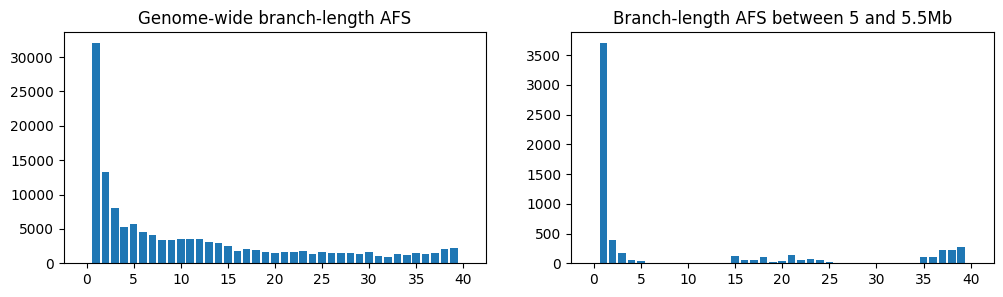

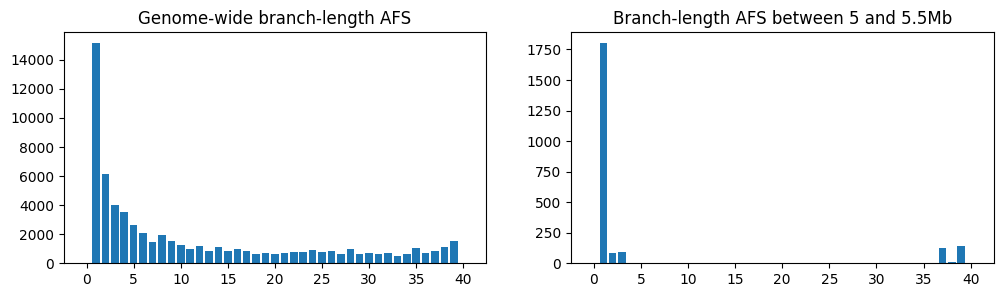

fig, (ax1, ax2) = plt.subplots(ncols=2, figsize=(12, 3))

afs1 = ts.allele_frequency_spectrum(polarised=True, mode="branch"), afs1)
ax1.set_title("Genome-wide branch-length AFS")

restricted_ts = ts.keep_intervals([[5e6, 5.5e6]])
afs2 = restricted_ts.allele_frequency_spectrum(polarised=True, mode="branch"), afs2)
ax2.set_title("Branch-length AFS between 5 and 5.5Mb")

On the left is the frequency spectrum averaged over the entire genome, and on the right is the spectrum for a section of the tree sequence between 5 and 5.5Mb, which we’ve created by deleting the regions outside that interval using TreeSequence.keep_intervals(). Unsurprisingly, as we noted when looking at the trees, there’s a far higher proportion of singletons in the region of the sweep.

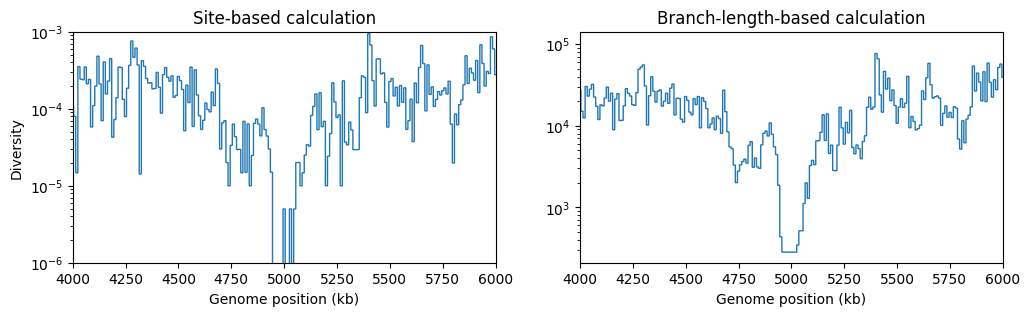

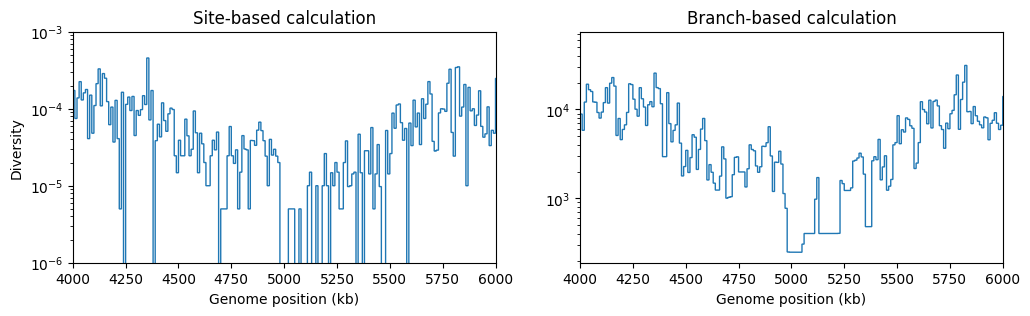

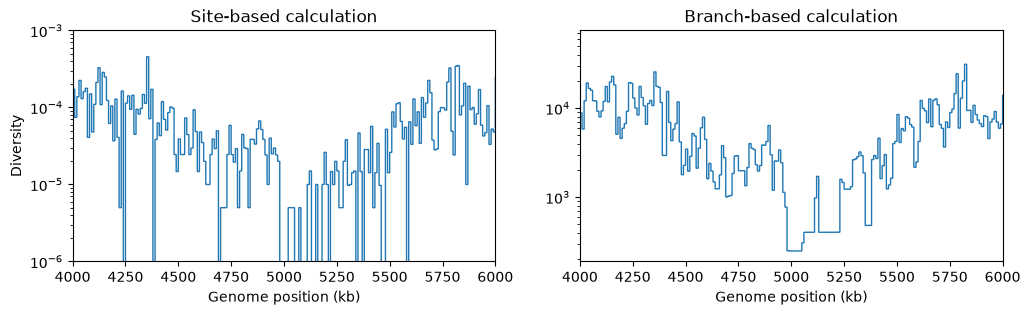

It is often useful to see how statistics vary in different genomic regions. This is done by calculating them in Windows along the genome. For this, let’s look at a single statistic, the genetic diversity() (π). As a site statistic this measures the average number of genetic differences between two randomly chosen samples, whereas as a branch length statistic it measures the average branch length between them. We’ll plot how the value of π changes using 10kb windows, plotting the resulting diversity between positions 4 and 6 Mb:

fig, (ax1, ax2) = plt.subplots(ncols=2, figsize=(12, 3))
L = int(ts.sequence_length)
windows = np.linspace(0, L, num=L//10_000)
ax1.stairs(ts.diversity(windows=windows), windows/1_000, baseline=None)  # Default is mode="site"
ax1.set_xlabel("Genome position (kb)")
ax1.set_title("Site-based calculation")
ax1.set_xlim(4e3, 6e3)
ax1.set_ylim(1e-6, 1e-3)
ax2.stairs(ts.diversity(windows=windows, mode="branch"), windows/1_000, baseline=None)
ax2.set_xlabel("Genome position (kb)")
ax2.set_title("Branch-length-based calculation")
ax2.set_xlim(4e3, 6e3)

There’s a clear drop in diversity in the region of the selective sweep. And as expected, the statistic based on branch-lengths gives a less noisy signal.

Saving and exporting data#

Tree sequences can be efficiently saved to file using TreeSequence.dump(), and loaded back again using tskit.load(). By convention, we use the suffix .trees for such files:

import tskit

new_ts = tskit.load("data/my_tree_sequence.trees")

It’s also possible to export tree sequences to different formats. Note, however, that not only are these usually much larger files, but that analysis is usually much faster when performed by built-in tskit functions than by exporting and using alternative software. If you have a large tree sequence, you should try to avoid exporting to other formats.

Newick and Nexus format#

The most common format for interchanging tree data is Newick. We can export to a newick format string quite easily. This can be useful for interoperating with existing tree processing libraries but is very inefficient for large trees. There is also no support for including sites and mutations in the trees.

small_ts = reduced_ts.keep_intervals([[0, 10000]])
tree = small_ts.first()

For an entire set of trees, you can use the Nexus file format, which acts as a container for a list of Newick format trees, one per line:

small_ts = small_ts.trim()  # Must trim off the blank region at the end of cut-down ts
print(small_ts.as_nexus(precision=3, include_alignments=False))
  TAXLABELS n0 n1 n2 n3 n4 n5 n6 n7 n8 n9;
  TREE t0.000^661.000 = [&R] (((n4:135.000,n9:135.000):5614.805,(n1:3587.236,(n0:2945.281,(n8:290.004,(n5:150.836,n7:150.836):139.168):2655.277):641.955):2162.570):61457.489,(n6:8362.020,(n2:1757.640,n3:1757.640):6604.380):58845.274);
  TREE t661.000^3116.000 = [&R] (((n4:135.000,n9:135.000):5614.805,(n1:3587.236,(n0:2945.281,(n8:290.004,(n5:150.836,n7:150.836):139.168):2655.277):641.955):2162.570):50834.692,(n6:8362.020,(n2:1757.640,n3:1757.640):6604.380):48222.477);
  TREE t3116.000^4451.000 = [&R] (((n4:135.000,n9:135.000):5614.805,(n1:3587.236,(n0:2945.281,(n8:290.004,(n5:150.836,n7:150.836):139.168):2655.277):641.955):2162.570):20242.950,(n6:8362.020,(n2:1757.640,n3:1757.640):6604.380):17630.736);
  TREE t4451.000^5076.000 = [&R] (((n4:135.000,n9:135.000):5614.805,(n1:3587.236,(n0:2945.281,(n8:290.004,(n5:150.836,n7:150.836):139.168):2655.277):641.955):2162.570):55250.945,(n6:8362.020,(n2:1757.640,n3:1757.640):6604.380):52638.730);
  TREE t5076.000^7049.000 = [&R] (((n4:135.000,n9:135.000):5614.805,(n1:3587.236,(n0:2945.281,(n8:290.004,(n5:150.836,n7:150.836):139.168):2655.277):641.955):2162.570):21090.493,(n6:8362.020,(n2:1757.640,n3:1757.640):6604.380):18478.278);
  TREE t7049.000^7995.000 = [&R] (((n4:135.000,n9:135.000):5614.805,(n1:3587.236,(n0:2945.281,(n8:290.004,(n5:150.836,n7:150.836):139.168):2655.277):641.955):2162.570):8736.110,(n6:8362.020,(n2:1757.640,n3:1757.640):6604.380):6123.895);
  TREE t7995.000^8742.000 = [&R] (((n4:135.000,n9:135.000):5614.805,(n1:3587.236,(n0:2945.281,(n8:290.004,(n5:150.836,n7:150.836):139.168):2655.277):641.955):2162.570):8736.110,(n2:8362.020,(n3:5358.852,n6:5358.852):3003.168):6123.895);
  TREE t8742.000^9279.000 = [&R] (((n4:135.000,n9:135.000):5614.805,(n1:3587.236,(n0:2945.281,(n8:290.004,(n5:150.836,n7:150.836):139.168):2655.277):641.955):2162.570):6741.465,(n2:8362.020,(n3:5358.852,n6:5358.852):3003.168):4129.250);
  TREE t9279.000^10000.000 = [&R] (((n4:135.000,n9:135.000):5614.805,(n1:3587.236,(n0:2945.281,(n8:290.004,(n5:150.836,n7:150.836):139.168):2655.277):641.955):2162.570):21090.493,(n2:8362.020,(n3:5358.852,n6:5358.852):3003.168):18478.278);


The standard way of interchanging genetic variation data is the Variant Call Format, for which tskit has basic support:

import sys
##source=tskit 0.5.5
##FILTER=<ID=PASS,Description="All filters passed">
#CHROM	POS	ID	REF	ALT	QUAL	FILTER	INFO	FORMAT	tsk_0	tsk_1	tsk_2	tsk_3	tsk_4
1	310	0	G	T	.	PASS	.	GT	0|0	1|1	0|0	1|0	0|0
1	890	1	T	G	.	PASS	.	GT	1|1	0|0	1|1	0|1	1|1
1	1052	2	T	C	.	PASS	.	GT	0|0	1|1	0|0	1|0	0|0
1	1375	3	T	A	.	PASS	.	GT	0|0	1|1	0|0	1|0	0|0
1	1918	4	A	G	.	PASS	.	GT	0|0	1|1	0|0	1|0	0|0
1	4921	5	T	G	.	PASS	.	GT	0|0	1|1	0|0	1|0	0|0
1	5050	6	C	A	.	PASS	.	GT	1|1	0|0	1|1	0|1	1|1
1	5132	7	T	A	.	PASS	.	GT	0|0	0|0	0|1	0|0	0|0
1	5531	8	T	A	.	PASS	.	GT	0|0	0|0	0|0	1|0	0|0
1	7204	9	A	T	.	PASS	.	GT	0|0	1|1	0|0	1|0	0|0
1	8930	10	A	G	.	PASS	.	GT	0|0	1|0	0|0	0|0	0|0
1	9800	11	C	G	.	PASS	.	GT	1|1	0|0	1|1	0|1	1|1

The write_vcf method takes a file object as a parameter; to get it to write out to the notebook here we ask it to write to stdout.


Because tskit integrates very closely with numpy, we can interoperate very efficiently with downstream Python libraries for working with genetic sequence data, such as scikit-allel. We can interoperate with scikit-allel by exporting the genotype matrix as a numpy array, which scikit-allel can then process in various ways.

import allel
# Export the genotype data to allel. Unfortunately there's a slight mismatch in the
# terminology here where genotypes and haplotypes mean different things in the two
# libraries.
h = allel.HaplotypeArray(small_ts.genotype_matrix())
print(h.n_variants, h.n_haplotypes)
12 10
<HaplotypeArray shape=(12, 10) dtype=int32>

Sckit.allel has a wide-ranging and efficient suite of tools for working with genotype data, so should provide anything that’s needed. For example, it gives us an another way to compute the pairwise diversity statistic (that we calculated above using the native TreeSequence.diversity() method):

ac = h.count_alleles()
array([0.46666667, 0.46666667, 0.46666667, 0.46666667, 0.46666667, 0.46666667, 0.46666667, 0.2       , 0.2       , 0.46666667, 0.2       , 0.46666667])

Key points covered above#

Some simple methods and take-home messages from this introduction to the tskit Python API, in rough order of importance:

  • Objects and their attributes

  • Key tree sequence methods

    • samples() returns an array of node IDs specifying the nodes that are marked as samples

    • node() returns the node object for a given integer node ID

    • trees() iterates over all the trees

    • sites() iterates over all the sites

    • variants() iterates over all the sites with their genotypes and alleles

    • simplify() reduces the number of sample nodes in the tree sequence to a specified subset

    • keep_intervals() (or its complement, delete_intervals()) removes genetic information from specific regions of the genome

    • draw_svg() returns an SVG representation of a tree sequence (and plots it if in a Jupyter notebook). Similarly, Tree.draw_svg() plots individual trees.

    • at() returns a tree at a particular genomic position (but using trees() is usually preferable)

    • Various population genetic statistics can be calculated using methods on a tree sequence, for example allele_frequency_spectrum(), diversity(), and Fst(); these can also be calculated in windows along the genome.
